ULTRALJUDSGIVARE

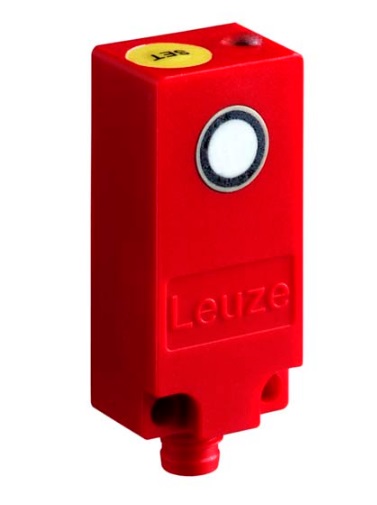

Serie RKU – Rektangulärt ultraljud:

• Platt konstruktion-perfekt vid trångt utrymme
• Bakgrundsavbländad  – Enkel att justera in.
• Färgoberoende
• Perfekt för transparenta objekt
• 1 – 200 mm arbetsområde
• IP 67

Serie RKU – Rektangulärt ultraljud:

• Platt konstruktion-perfekt vid trångt utrymme
• Bakgrundsavbländad  – Enkel att justera in.
• Färgoberoende
• Perfekt för transparenta objekt
• 10 – 400 mm arbetsområde
• IP 67

Serie RKU – Rektangulärt ultraljud:

• Platt konstruktion-perfekt vid trångt utrymme
• Bakgrundsavbländad  – Enkel att justera in.
• Färgoberoende
• Perfekt för transparenta objekt
• 100 – 1000 mm arbetsområde
• Bred ljudloob
• IP 67

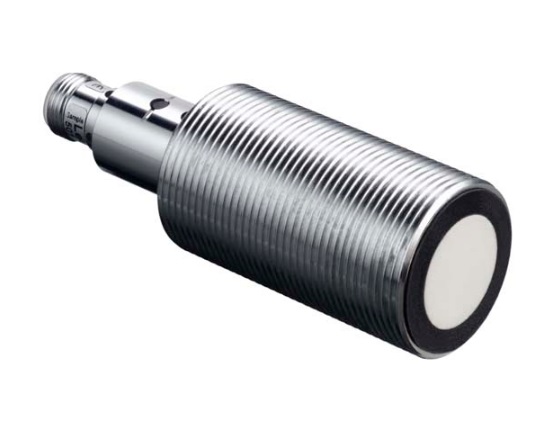

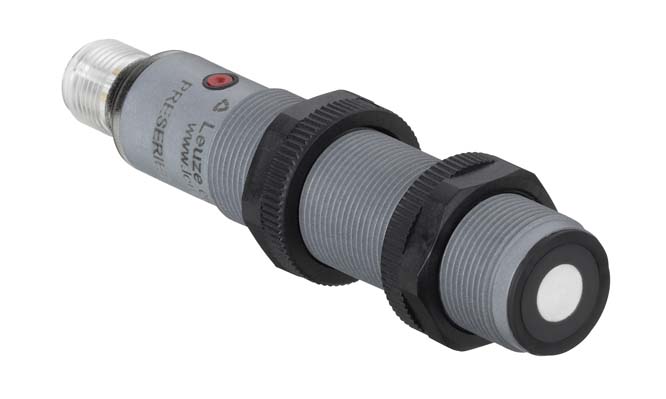

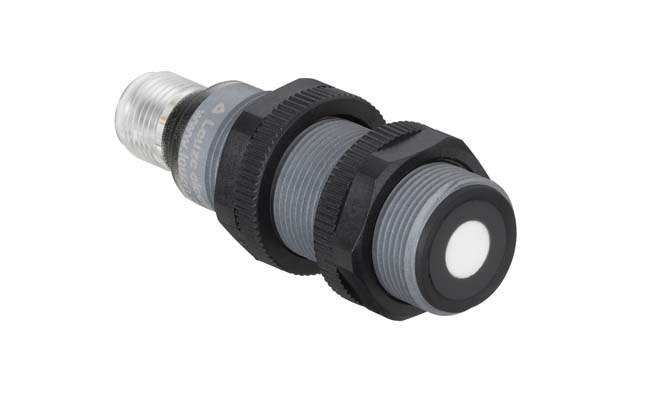

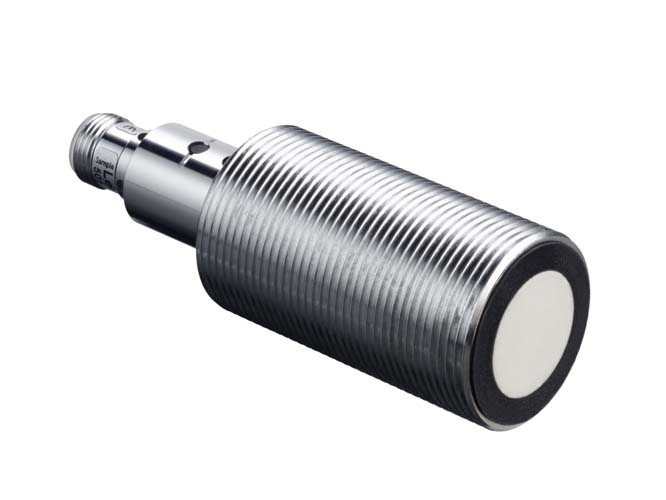

Serie M18 – ultraljud:

• Bakgrundsavbländad  – Enkel att justera in.
• Färgoberoende
• Perfekt för transparenta objekt
• 25 – 400 mm arbetsområde
• 100 – 700 mm arbetsområde
• 150 – 1000 mm arbetsområde

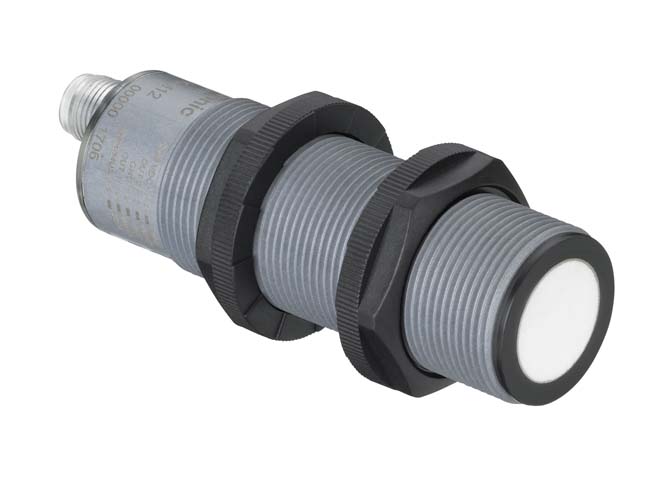

Serie M18 – ultraljud:

• Bakgrundsavbländad  – Enkel att justera in.
• Färgoberoende
• Perfekt för transparenta objekt
• 300 – 6000 mm arbetsområde

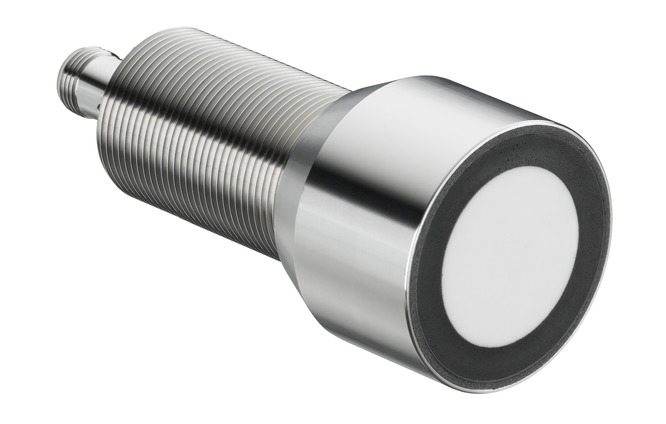

Serie M18- ultraljud:

• Bakgrundsavbländad  – Enkel att justera in.
• Färgoberoende
• Perfekt för transparenta objekt
• 600 – 6000 mm arbetsområde
• Strömutgång 4 – 20mA
• Spänningsutgång 0 – 10 V

• • Supply voltage U_B 10 … 30 V, DC
  • Residual ripple 0 … 5 %, From U_B
  • Open-circuit current 0 … 35 mA
  • Switching hysteresis 1 %

• Voltage 0 … 10 V

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 4 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 60.3 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 65 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 40 … 300 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple0 … 5 %, From U_B
  • Open-circuit current0 … 35 mA
  • Switching hysteresis1 %

• current 4 … 20 mA

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 4 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 60.3 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 65 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 80 … 1200 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 5 %, From U_B
  • Open-circuit current 0 … 35 mA
  • Switching hysteresis 1 %

• Voltage 0 … 10 V

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 4 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 60.3 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 65 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 80 … 1200 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 5 %, From U_B
  • Open-circuit current 0 … 35 mA
  • Switching hysteresis 1 %

• current 4 … 20 mA

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 4 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 60.3 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 65 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 50 … 400 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• Voltage 0 … 10 V

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 91.6 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 50 … 400 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• current 4 … 20 mA

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 91.6 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 50 … 400 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• current 4 … 20 mA

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 91.6 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 150 … 1600 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• voltage 0 … 10 V

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 91.6 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 150 … 1600 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• current 4 … 20 mA

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 91.6 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 150 … 1600 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• current 4 … 20 mA

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 91.6 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 50 … 400 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• current 0 … 10 V

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 88.3 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 50 … 400 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• current 0 … 10 V

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 88.3 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 50 … 400 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• current 4 … 20 mA

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 88.3 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 50 … 400 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• current 4 … 20 mA

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 88.3 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 150 … 1600 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• voltage 0 … 10 V

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 88.3 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 150 … 1600 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• voltage 0 … 10 V

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 88.3 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 150 … 1600 mm
• Resolution < 2 mm
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 5 %

• Protective circuit Short circuit protected, Inductive protection, Polarity reversal protection

  Performance data
  • Supply voltage U_B10 … 30 V, DC
  • Residual ripple 0 … 7 %, From U_B
  • Open-circuit current 0 … 50 mA
  • Switching hysteresis 1 %

• current 4 … 20 mA

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 88.3 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 70 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 250 … 3,500 mm
• Resolution 5 mm
• Accuracy 1 %
• Reference value, accuracy End value
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 8 %

• Supply voltage U_B 12 … 30 V, DC
• Residual ripple 0 … 5 %, From U_B
• Open-circuit current 0 … 50 mA
• Switching hysteresis 1 %

• Voltage0 … 10 V

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M30 x 1.5 mm
• Dimension (Ø x L) 30 mm x 98.8 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 140 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 250 … 3,500 mm
• Resolution 5 mm
• Accuracy 1 %
• Reference value, accuracy End value
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 8 %

• Supply voltage U_B 12 … 30 V, DC
• Residual ripple 0 … 5 %, From U_B
• Open-circuit current 0 … 50 mA
• Switching hysteresis 1 %

• Voltage0 … 10 V

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M30 x 1.5 mm
• Dimension (Ø x L) 30 mm x 98.8 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 140 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 250 … 3,500 mm
• Resolution 5 mm
• Accuracy 1 %
• Reference value, accuracy End value
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 8 %

• Supply voltage U_B 12 … 30 V, DC
• Residual ripple 0 … 5 %, From U_B
• Open-circuit current 0 … 50 mA
• Switching hysteresis 1 %

• Voltage 4 … 20 mA

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M30 x 1.5 mm
• Dimension (Ø x L) 30 mm x 98.8 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 140 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 350 … 6000 mm
• Resolution 6 mm
• Accuracy 1 %
• Reference value, accuracy End value
• Repeatability 0.5 %
• Reference value repeatability End value
• Temperature drift 8 %

• Supply voltage U_B 12 … 30 V, DC
• Residual ripple 0 … 5 %, From U_B
• Open-circuit current 0 … 50 mA
• Switching hysteresis 1 %

• current 4 … 20 mA

• Type of connection Connector
• Thread size M12
• Material Plastic
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M30 x 1.5 mm
• Dimension (Ø x L) 30 mm x 98.8 mm
• Housing material Plastic
• Plastic housing Polybutylene (PBT)
• Sensing face material Plastic, Epoxy resin, glass fiber reinforced
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 140 g

• Ambient temperature, operation -20 … 70 °C
• Ambient temperature, storage -20 … 70 °C

• Degree of protection IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 25 … 400 mm
• Resolution 0.1 … 0.5 mm
• Accuracy -0.5 … 0.5 %
• Reference value, accuracy End value
• Repeatability 0.15 %
• Reference value repeatability End value
• Temperature drift 1.5 %

• Supply voltage U_B 15 … 30 V, DC
• Residual ripple 0 … 10 %, From U_B
• Open-circuit current 30 … 50 mA
• Switching hysteresis 5,000 µm

• Type of connection Connector
• Thread size M12
• Material Metal
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 90 mm
• Housing material Metal
• Metal housing Nickel-plated brass
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 50 g

• Ambient temperature, operation -25 … 70 °C
• Ambient temperature, storage -30 … 85 °C

• Degree of protection IP 67, IP 68
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 25 … 400 mm
• Resolution 0.1 … 0.5 mm
• Accuracy -0.5 … 0.5 %
• Reference value, accuracy End value
• Repeatability 0.15 %
• Reference value repeatability End value
• Temperature drift 1.5 %

• Supply voltage U_B 15 … 30 V, DC
• Residual ripple 0 … 10 %, From U_B
• Open-circuit current 30 … 50 mA
• Switching hysteresis 5,000 µm

• Type of connection Connector
• Thread size M12
• Material Metal
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 90 mm
• Housing material Metal
• Metal housing Nickel-plated brass
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 50 g

• Ambient temperature, operation -25 … 70 °C
• Ambient temperature, storage -30 … 85 °C

• Degree of protection IP 67, IP 68
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 150 … 1300 mm
• Resolution 0.1 … 0.5 mm
• Accuracy -0.5 … 0.5 %
• Reference value, accuracy End value
• Repeatability 0.15 %
• Reference value repeatability End value
• Temperature drift 1.5 %

• Supply voltage U_B 15 … 30 V, DC
• Residual ripple 0 … 10 %, From U_B
• Open-circuit current 30 … 50 mA
• Switching hysteresis 10,000 µm

• Type of connection Connector
• Thread size M12
• Material Metal
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M18 x 1 mm
• Dimension (Ø x L) 18 mm x 90 mm
• Housing material Metal
• Metal housing Nickel-plated brass
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 50 g

• Ambient temperature, operation -25 … 70 °C
• Ambient temperature, storage -30 … 85 °C

• Degree of protection IP 67, IP 68
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 600 … 6,000 mm
• Resolution 1.0 mm
• Accuracy 0.5 %
• Reference value, accuracy End value
• Reference value repeatability End value
• Temperature drift 1.5 %

• Supply voltage U_B 15 … 30 V, DC
• Residual ripple 0 … 10 %, From U_B
• Open-circuit current 0 … 50 mA
• Switching hysteresis 25,000 µm

• Type of connection Connector
• Thread size M12
• Material Metal
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M30 x 1 mm
• Dimension (Ø x L) 30 mm x 104.3 mm
• Housing material Metal
• Metal housing Nickel-plated brass
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 240 g

• Ambient temperature, operation -25 … 50 °C
• Ambient temperature, storage -40 … 85 °C

• Degree of protection IP 68, IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 600 … 6,000 mm
• Resolution 1.0 mm
• Accuracy 0.5 %
• Reference value, accuracy End value
• Reference value repeatability End value
• Temperature drift 1.5 %

• Supply voltage U_B 15 … 30 V, DC
• Residual ripple 0 … 10 %, From U_B
• Open-circuit current 0 … 50 mA
• Switching hysteresis 25,000 µm

• Type of connection Connector
• Thread size M12
• Material Metal
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M30 x 1 mm
• Dimension (Ø x L) 30 mm x 104.3 mm
• Housing material Metal
• Metal housing Nickel-plated brass
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 240 g

• Ambient temperature, operation -25 … 50 °C
• Ambient temperature, storage -40 … 85 °C

• Degree of protection IP 68, IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 300 … 3,000 mm
• Resolution 1.0 mm
• Accuracy 0.5 %
• Reference value, accuracy End value
• Reference value repeatability End value
• Temperature drift 1.5 %

• Supply voltage U_B 15 … 30 V, DC
• Residual ripple 0 … 10 %, From U_B
• Open-circuit current 0 … 50 mA
• Switching hysteresis 25,000 µm

• Type of connection Connector
• Thread size M12
• Material Metal
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M30 x 1 mm
• Dimension (Ø x L) 30 mm x 104.3 mm
• Housing material Metal
• Metal housing Nickel-plated brass
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 240 g

• Ambient temperature, operation -25 … 50 °C
• Ambient temperature, storage -40 … 85 °C

• Degree of protection IP 68, IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2

• Measurement range 300 … 3,000 mm
• Resolution 1.0 mm
• Accuracy 0.5 %
• Reference value, accuracy End value
• Reference value repeatability End value
• Temperature drift 1.5 %

• Supply voltage U_B 15 … 30 V, DC
• Residual ripple 0 … 10 %, From U_B
• Open-circuit current 0 … 50 mA
• Switching hysteresis 25,000 µm

• Type of connection Connector
• Thread size M12
• Material Metal
• No. of pins 5 -pin
• Encoding A-coded

• Design Cylindrical
• Thread size M30 x 1 mm
• Dimension (Ø x L) 30 mm x 104.3 mm
• Housing material Metal
• Metal housing Nickel-plated brass
• Ultrasonic transducer material Piezoceramics (contains lead zirconium titanate (PZT))
• Net weight 240 g

• Ambient temperature, operation -25 … 50 °C
• Ambient temperature, storage -40 … 85 °C

• Degree of protection IP 68, IP 67
• Protection class III
• Certifications c UL US
• Standards applied IEC 60947-5-2
